However, Alexey Orlov and Arena Project Institute dedicated the entire architecture of their pavilion to the theme of time, transforming it into a giant metaphorical “clock” divided into three major parts.

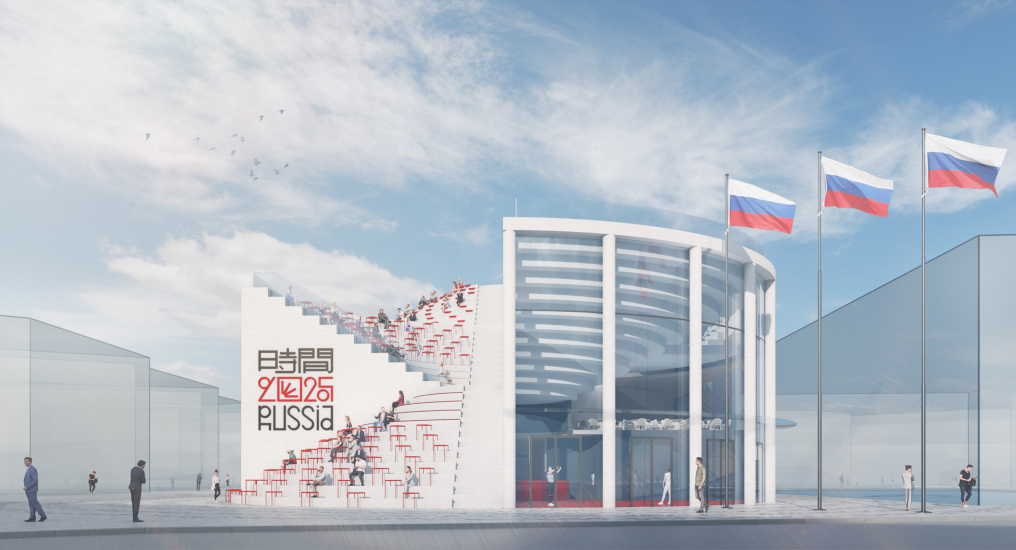

On the façade, among other things, there is a regular large electronic clock, but it is not the main thing here.
Pavilion at World EXPO in Osaka. Time.
Copyright: © Arena Project Institute

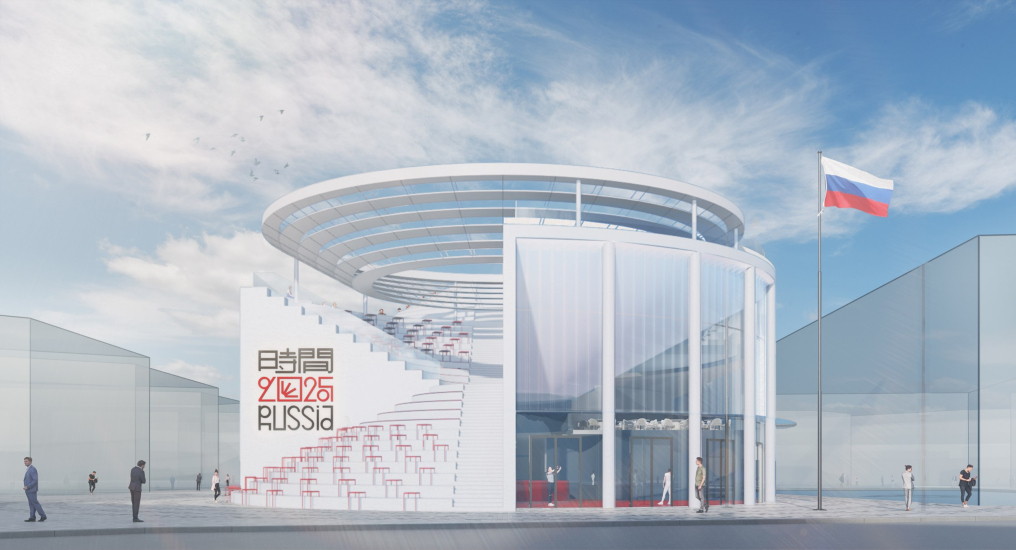

The idea of an hourglass with its two cones, as outlined in the brief, was interpreted by the architects through amphitheaters, essentially turning the entire volume into an almost symmetrical alternation of public spaces, designed as cones with stepped surfaces. The curved arc naturally transitions into a concave shape at the point of junction, with a continuous staircase running along them.
Pavilion at World EXPO in Osaka. Time.
Copyright: © Arena Project Institute
Thus, an interesting stereometric intrigue emerges.
The elongated section in the project by Arena Project Institute is divided into three squares, each of which is inscribed within a circle. In the central circle stands a cone-shaped mountain (the highest volume here), while on the sides there are recessed funnel cones – not solid, but three-quarters hollow. In short, the pavilion is composed of a series of rhythmically arranged funnels, sequentially inverted up and down. It resembles a mechanism, parts of which are rotated at different but strict angles. The whole picture looks like an enigmatic clock mechanism.

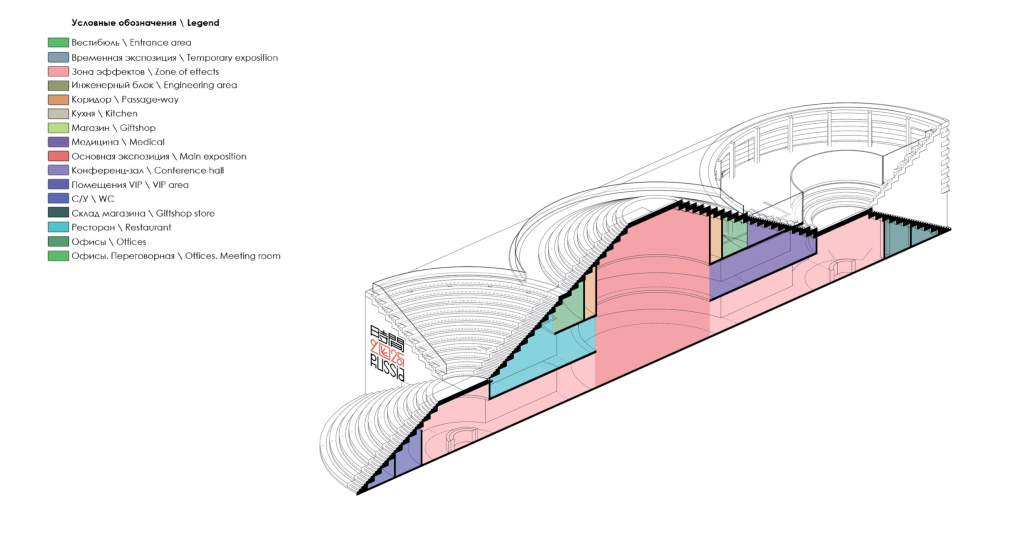

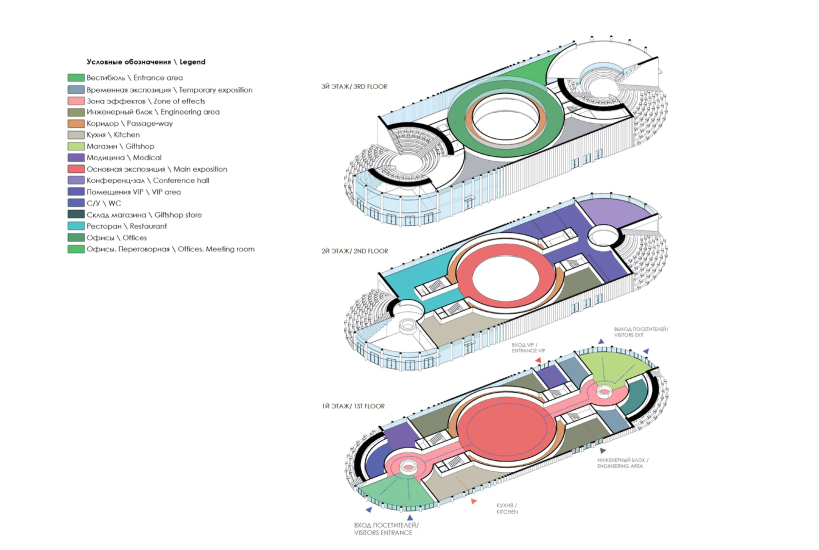

Pavilion at World EXPO in Osaka. Time. Axonometric drawing
Copyright: © Arena Project Institute
The inverted stepped pyramids on the inside are also intriguing.
Pavilion at World EXPO in Osaka. Time.
Copyright: © Arena Project Institute

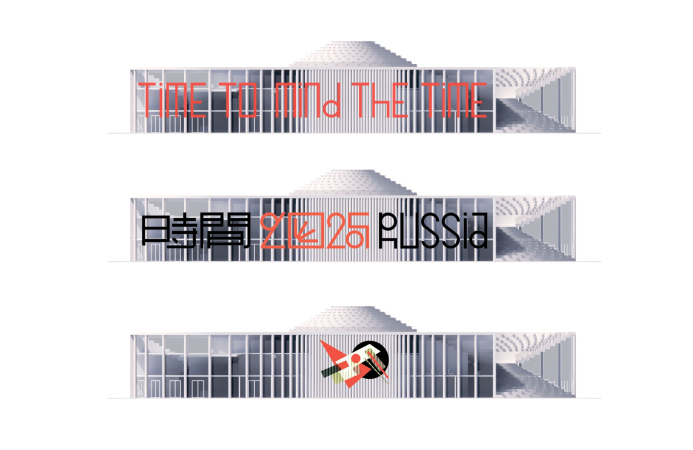

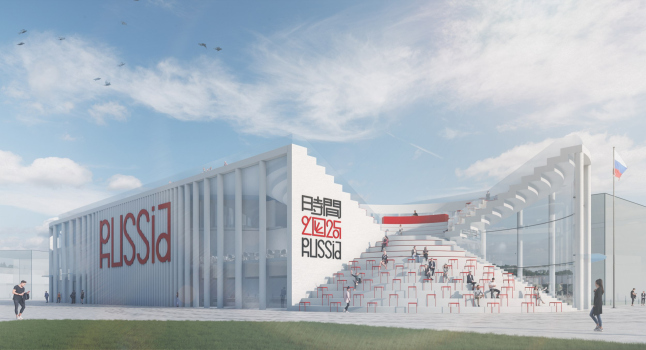

The facades on the outer curves under the funnel-like amphitheaters are composed of widely spaced columns, so in one of the versions, the stepped structure of the lower part of the amphitheater-funnel is very well visible.
Additionally, the architects proposed to illuminate these funnels from below, further “exposing” the volume to the eyes, and emphasizing this paradoxical union of concave and convex surfaces.
Pavilion at World EXPO in Osaka. Time.
Copyright: © Arena Project Institute
This approach resembles the design of large stadiums. There, external walls are often completely or partially omitted, so the stepped descent of the stands is visible from the outside. And at this point we suddenly recall that the authors of this project – Arena Project Institute – are indeed the architects of many sports facilities in the country. We understand that the theme of the stadium is literally growing from the inside of the pavilion, just as the theme of the ancient theater and hippodrome.
Pavilion at World EXPO in Osaka. Time.
Copyright: © Arena Project Institute
All archetypes are clearly visible to an experienced observer: the rectangle with rounded ends suggests a hippodrome, the “funnels” resemble a Greek theater (only in this case it is not embedded in a hillside but in the body of the building), and finally, the stepped cone of the center evokes some Eastern-Hellenistic, or even Anatolian associations.

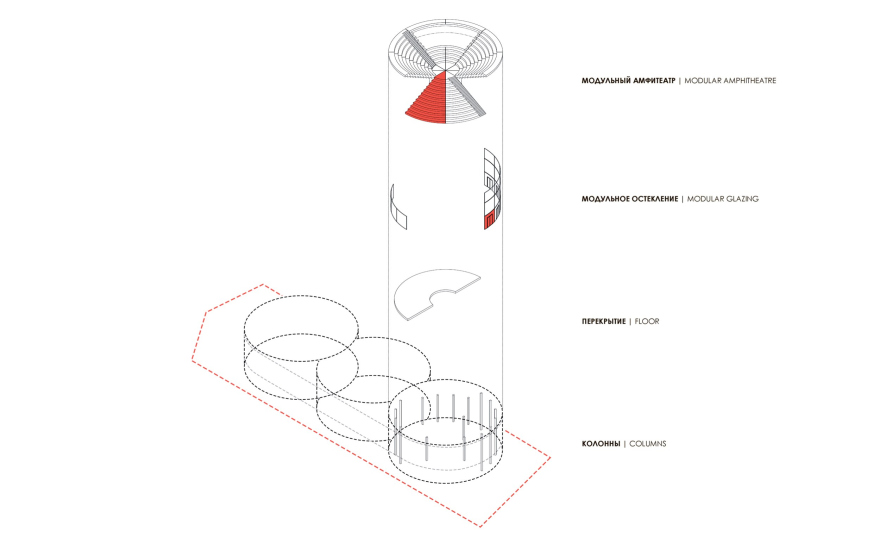

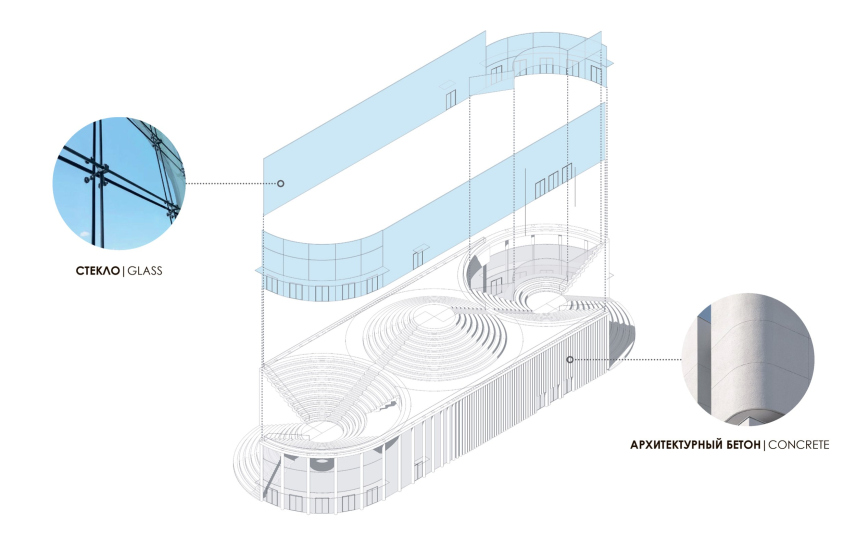

On the curves outside, there are light slender columns transitioning into ribs made of architectural concrete. Behind them is a glass shell. All structures were planned to be modular: the metal frame, the concrete elements, and the stained glass fragments.

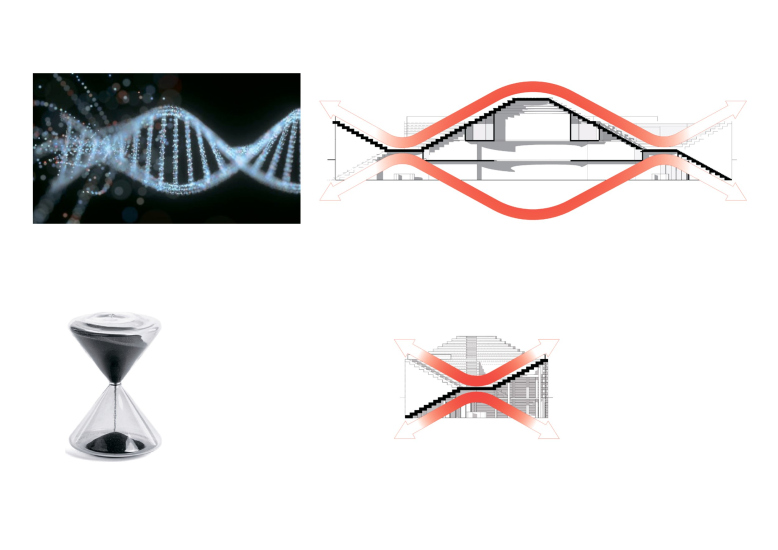

The form is remarkable, not immediately understandable, but interesting in terms of structure and internal logic. The authors even compare it to a DNA spiral – it does indeed resemble a DNA spiral in cross-section, and, as already mentioned, it resembles various types of clocks and hourglasses.
If you were to look from above, the visitors would enter at half past five and exit at half past ten. Or looking at the clock faces, one could imagine it differently: the visitors are allocated a “geometric” half-hour for visiting the pavilion, from 15 minutes to 45.

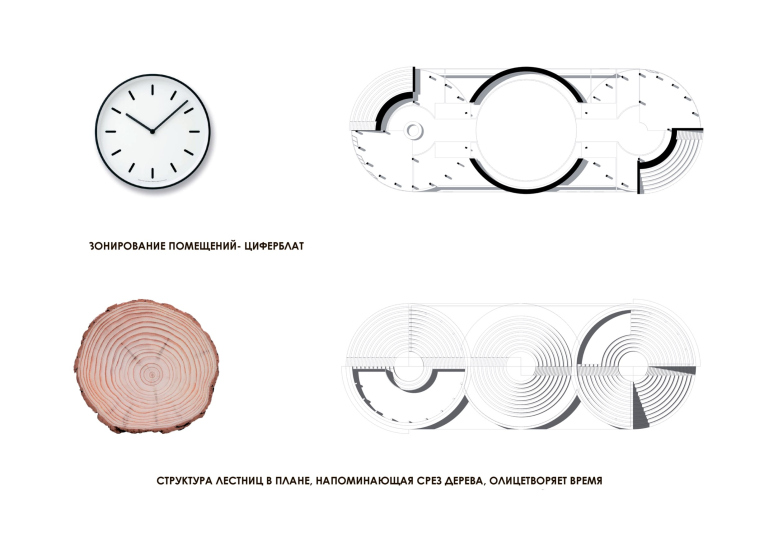

In addition to everything else, if you look from above, the “hourglass” shapes are overlaid with “sundials” – this can be seen from the shadows.
Pavilion at World EXPO in Osaka. Time.
Copyright: © Arena Project Institute
In the paving pattern, there are circles radiating from each of the “dials”.

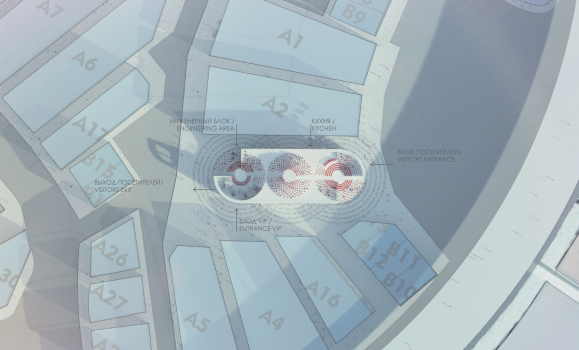

Pavilion at World EXPO in Osaka. Time. The territory organization
Copyright: © Arena Project Institute
Thus, the main theme of the pavilion is intricately, or, should I even say, passionately – woven into its form.
Furthermore, although the architects do not mention this, one can imagine that the three parts of the pavilion represent the past, present, and future, like the entrance, middle, and exit. The Present is the pavilion’s center with its conical dome, a unified space surrounded by a circular balcony and the main exhibit (presumably the Tree of Time, although the architects do not specify this detail). The Present is solid, large, and elevated. We do not fully possess the Past or the Future: one is in our memories, the other is in our plans, and so they are deconstructed, exposed, and designed as sophisticated funnels. But it is through them that we enter and exit – both in the commonly accepted understanding of reality and in the metaphorical understanding of the pavilion.
The pyramidal structure of the building, well visible in cross-section, turns out to be very relevant here: ascent, peak, and descent – also a metaphor for time.

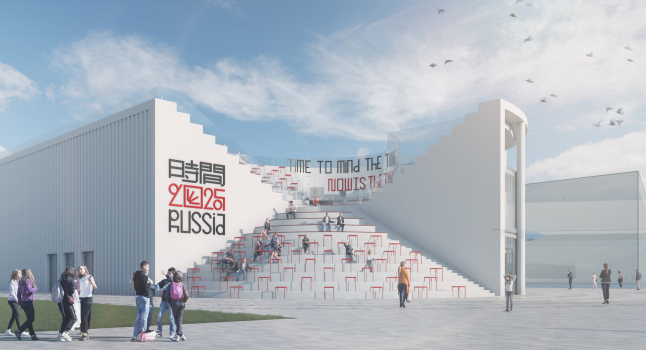

Back to the amphitheaters, though! All the steps are covered with seats and tables, which does make the pavilion look like a real forum, a public space for many people.
Pavilion at World EXPO in Osaka. Time. The amphitheater
Copyright: © Arena Project Institute
Here we should remember that amphitheaters are one of the key, and very popular, themes at any EXPO. Since the exhibition itself is always a large public space, its sub-spaces are also very popular, as they not only provide a way to rest for the tired visitor, but also “activate” their pavilion, making it the center of “bustle” on one hand, and contemplation on the other. In this sense, the project is very much in line with the trends of modern world exhibitions.

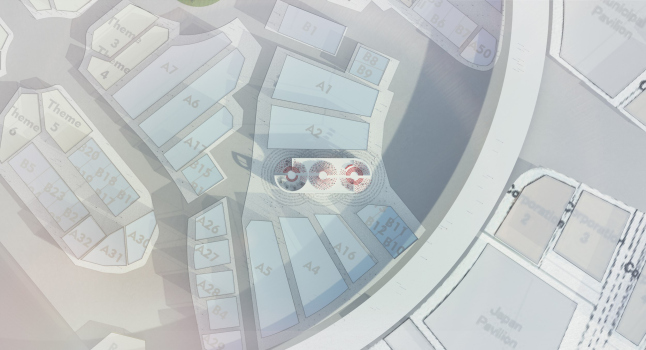

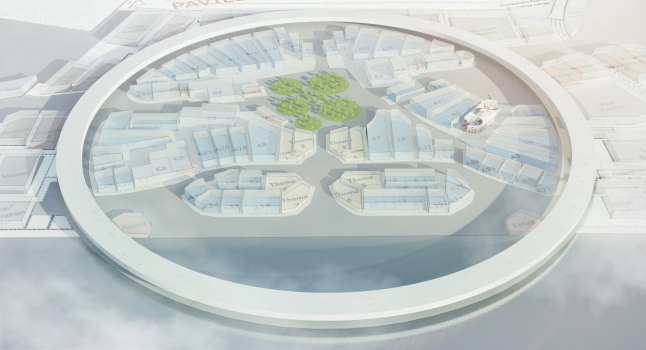

Equally, the circles, repeated many times in the pavilion and in its paving, resonate with the urban planning idea of Sou Fujimoto, who encircled the exhibition area with a ring. They echo the big ring as small rings to a large one. And, like ripples on water, they are also ticking away the time – drip-drip-drip…
